Software Setup¶

This section covers the setup process for all required software components.

Except for AWSIM Labs, which is installed only on Host 1, Autoware, Zenoh, and tools like Barrier and AnyDesk are installed on every host in the system.

Barrier & AnyDesk (Multi-Host Control and File Access)¶

When managing multiple machines in a distributed simulation, efficient control and file transfer tools are essential.

Barrier¶

Barrier allows one keyboard and mouse to control multiple systems by moving the cursor between screens, as if they were a single extended desktop. This is especially useful when running Autoware and related tools across hosts.

AnyDesk¶

AnyDesk provides lightweight remote access and file transfer between hosts.

Remote Access: Enables headless operation of Host 1 (Nitro PC), allowing Host 2 (ROG Laptop) to restart Barrier or terminals after reboots.
File Transfer: Quick sharing without USB drives or external cloud services.

Installation¶

Initial Hardware Setup

Connect a keyboard and mouse to each host for the first-time configuration.
AnyDesk

Install AnyDesk on all hosts and set a password for unattended access to enable quick remote connections.
Barrier

Install Barrier on all hosts.
- Host 1: Run Barrier in server mode.
- Host 2: Run Barrier in client mode and connect to Host 1.
Post-Reboot Recovery

If Barrier does not auto-launch after a reboot, use AnyDesk to remotely access the host and restart Barrier without physically reconnecting peripherals.

Barrier and AnyDesk significantly improved productivity by reducing downtime, avoiding physical reconnections, and streamlining debugging during multi-machine development.

Repository Cloning¶

Clone the main repository for this architecture on all hosts.

cd ~
git clone https://github.com/zubxxr/distributed-multi-autonomous-vehicle-architecture.git

The repository contains:

Zenoh configuration files (zenoh_configs/) for different host setups.
A cyclonedds.xml configuration file for cross-host ROS 2 communication.
Map and localization configuration files for Autoware.

Autoware Universe¶

Autoware is an open-source autonomous driving stack designed for self-driving vehicles. It provides core modules for localization, perception, planning, and control. Autoware must be installed on each host that is responsible for controlling a vehicle.

Hardware Requirements¶

Before starting, review Autoware’s official hardware requirements.

Version¶

This guide uses the Autoware branch release/2024.11, with a forked and customized version available here: Customized Autoware Repository

Increase Swap Memory (Optional but Recommended)¶

If you encounter memory issues when building Autoware, increase your swap size:

# Check current swap usage
free -h

# Remove the existing swapfile
sudo swapoff /swapfile
sudo rm /swapfile

# Create a new 32GB swapfile
sudo fallocate -l 32G /swapfile
sudo chmod 600 /swapfile
sudo mkswap /swapfile
sudo swapon /swapfile

# Verify changes
free -h

More info: Autoware Build Troubleshooting.

Installation Steps¶

The following installation steps are adapted from the Autoware Universe Source Installation Guide.

Install Git

sudo apt-get -y update
sudo apt-get -y install git

Clone Autoware

Recommended: use the latest stable release

cd ~
git clone https://github.com/zubxxr/autoware.git -b avp-release/2025.08
cd ~/autoware

Alternatively: use the main branch if you want the newest (possibly experimental) changes

cd ~
git clone https://github.com/zubxxr/autoware.git
cd ~/autoware

Install Development Environment
```
./setup-dev-env.sh
```
If any build issues are encountered, see the Autoware Troubleshooting Guide and this issue thread.

Import Source Code

cd ~/autoware
mkdir src
vcs import src < autoware.repos

Install ROS 2 Dependencies

source /opt/ros/humble/setup.bash
sudo apt update && sudo apt upgrade
rosdep update
rosdep install -y --from-paths src --ignore-src --rosdistro $ROS_DISTRO

Setup Ccache

sudo apt update && sudo apt install ccache
mkdir -p ~/.cache/ccache
touch ~/.cache/ccache/ccache.conf
echo "max_size = 60G" >> ~/.cache/ccache/ccache.conf

Integrate Ccache into Environment

Open the .bashrc file using the Text Editor:

gedit ~/.bashrc

Add the following lines:

export CC="/usr/lib/ccache/gcc"
export CXX="/usr/lib/ccache/g++"
export CCACHE_DIR="$HOME/.cache/ccache/"

Save the file and source it:

source ~/.bashrc

Verify:

ccache -s

Build Autoware
```
cd ~/autoware
colcon build --symlink-install --cmake-args -DCMAKE_BUILD_TYPE=Release
```
Building Autoware can take about 1-3 hours.

If any build issues occur, refer to issues or the Autoware community for possible solutions.

Running Autoware¶

Once Autoware is successfully built, it should be tested to ensure the installation is functioning correctly.

Download the Map

gdown -O ~/autoware_map/ 'https://docs.google.com/uc?export=download&id=1prmoy4UBgT_J-tJ7SELsL7m9alWGzD71'
unzip -d ~/autoware_map ~/autoware_map/sirc.zip

Source the Environment

source /opt/ros/humble/setup.bash
source ~/autoware/install/setup.bash

Launch Autoware using the Planning Simulation

ros2 launch autoware_launch planning_simulator.launch.xml map_path:=$HOME/autoware_map/sirc vehicle_model:=sample_vehicle sensor_model:=sample_sensor_kit

Follow the Basic Simulations to run different scenarios in Autoware.

AWSIM Labs¶

AWSIM Labs is a Unity-based 3D simulation environment tailored for testing autonomous vehicles using Autoware. It provides realistic visuals, physics, and ROS 2 integration to simulate ego vehicle behavior in structured environments like parking lots.

Recommendation: Install AWSIM Labs on the most powerful host in your setup (e.g., Nitro PC), as it is the most resource-intensive component in the simulation pipeline.

This section is adapted from the official AWSIM Labs Unity Setup Guide.

Networking Configurations¶

Add the following lines to your ~/.bashrc file

if [ ! -e /tmp/cycloneDDS_configured ]; then
    sudo sysctl -w net.core.rmem_max=2147483647
    sudo sysctl -w net.ipv4.ipfrag_time=3
    sudo sysctl -w net.ipv4.ipfrag_high_thresh=134217728     # (128 MB)
    sudo ip link set lo multicast on
    touch /tmp/cycloneDDS_configured
fi

Set up CycloneDDS

Copy the configuration file from the repository to the home directory:

cp ~/distributed-multi-autonomous-vehicle-architecture/cyclonedds.xml ~/cyclonedds.xml

Add these lines to your ~/.bashrc:

export RMW_IMPLEMENTATION=rmw_cyclonedds_cpp
export CYCLONEDDS_URI=/home/your_username/cyclonedds.xml

Replace your_username with your actual Linux username.

Preparation¶

Follow the Environment preparation and ROS 2 sections.

The "ROS 2" section recommends that ROS 2 should not be sourced in your environment when running Unity.
Recommendation: It is best to remove ROS 2 sourcing lines from ~/.bashrc and manually source ROS 2 only when needed.

Unity Installation Steps¶

Due to authentication requirements, Unity Hub is first installed in Step 1 via the package manager to allow account sign-in. In Step 2, the Unity Hub AppImage is installed and used for all subsequent project work.

Install Unity Hub from the Package Manager

Follow the "Install the Unity Hub on Linux" section in this page.

After installation, launch Unity Hub with:
```
unityhub
```
Sign in or create a Unity account as prompted.

Install Unity Editor Binary

Run the following commands to install the Unity Editor:

# Create a directory to store Unity-related files
mkdir ~/Unity
cd ~/Unity

# Install and configure required libraries
sudo apt install fuse libfuse2
sudo modprobe fuse
sudo groupadd fuse
sudo usermod -a -G fuse $USER

# Download the Unity Hub AppImage
wget https://public-cdn.cloud.unity3d.com/hub/prod/UnityHub.AppImage

# Make the Unity Hub AppImage executable
chmod +x UnityHub.AppImage

# Launch Unity Hub and directly install Unity Editor version 2022.3.62f1
./UnityHub.AppImage unityhub://2022.3.62f1/d91830b65d9b

The final command installs Unity version 2022.3.62f1, which at the time of writing is the current version.

For future use, to launch Unity Hub later, run the following command in a terminal that does not have ROS 2 sourced:

~/Unity/UnityHub.AppImage

AWSIM Labs Configuration Steps¶

Open the AWSIM Labs Project

Follow the Open AWSIM Labs project section.

Note: Replace the following command:

git clone https://github.com/autowarefoundation/AWSIM-Labs.git

with:

git clone https://github.com/zubxxr/AWSIM-Labs.git

Import the Environment

In the Import external packages section, do not use the green “Download Map Package” button shown in the docs.

Instead, download the map package from this link: Download SIRC_MultiVehicle_URP_v1.0.0.unitypackage

Then, follow the remaining steps in the section to import the .unitypackage file into Unity.
Import Assets

Follow the Import Vehicle Physics Pro Community Edition Asset and Import Graphy Asset.

Running AWSIM Labs¶

To run the simulation, follow the Run the Demo in Editor section.

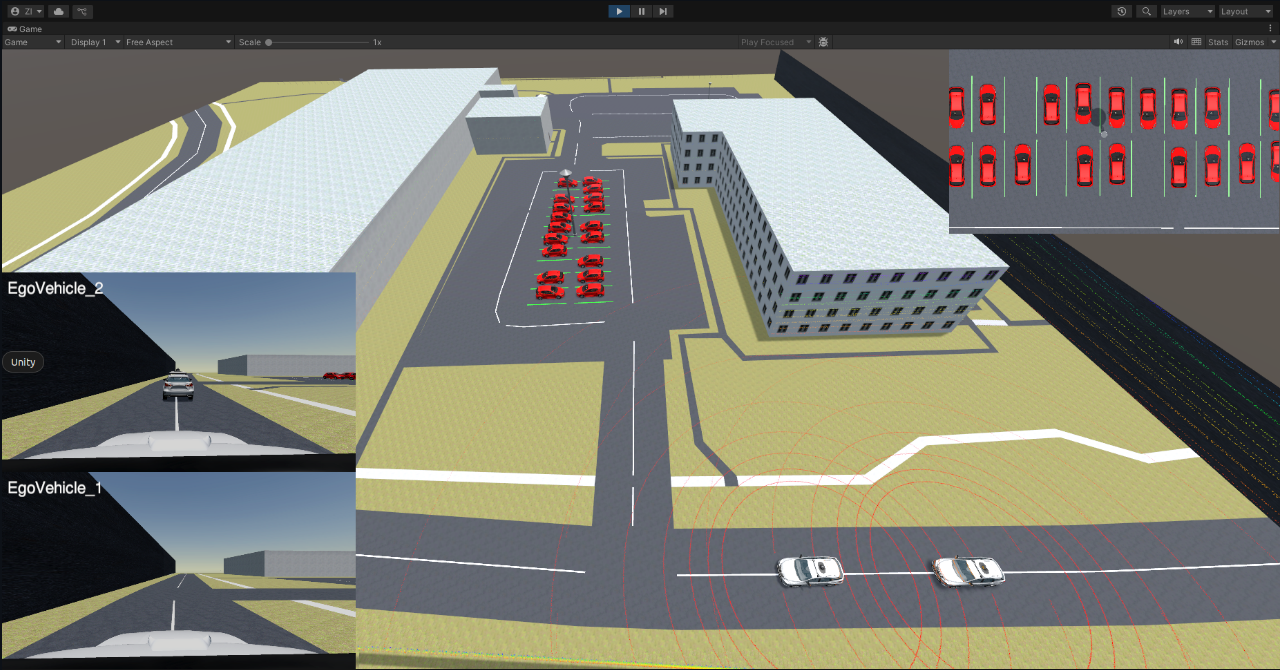

After successful completion, the simulation will be running with two ego vehicles. These vehicles will later be controlled by their own Autoware clients.

Multi-Vehicle Simulation Diagram

The game view is expanded by double clicking on the Game tab.

Zenoh Middleware¶

Zenoh is a lightweight communication middleware designed for data routing across networks. In this architecture, Zenoh bridges ROS 2 topics between multiple hosts, enabling real-time communication between AWSIM Labs and their respective Autoware instances running on separate machines.

Design Considerations¶

In this setup, AWSIM Labs simulates two ego vehicles, both publishing the same ROS 2 topics. To avoid collisions, one vehicle is assigned a topic namespace:

EgoVehicle_1 — connects locally to AWSIM Labs on the same host (no namespace)
EgoVehicle_2 — connects from the second host to AWSIM Labs on the first host with the /vehicle2 namespace

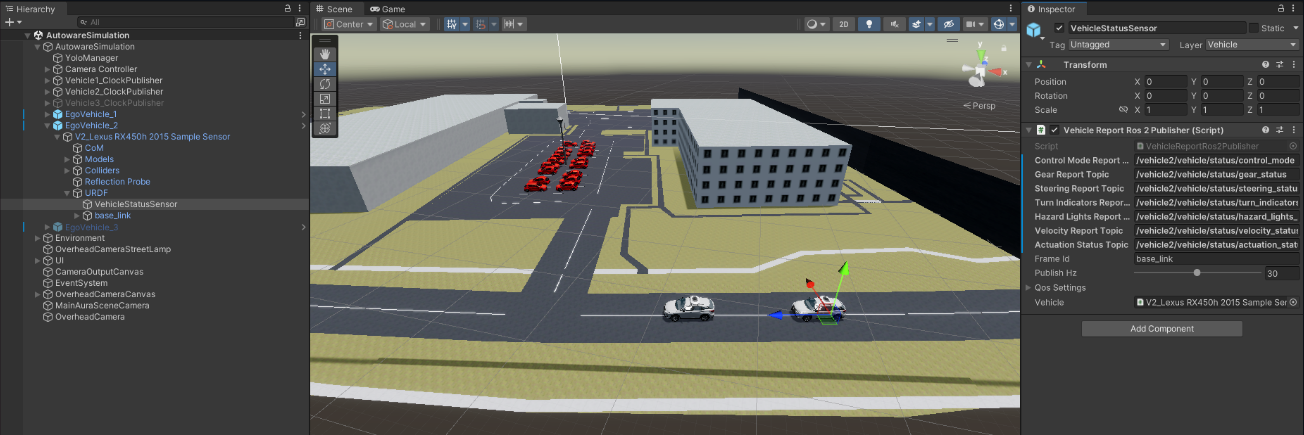

This ensures all topics are isolated. For the EgoVehicle_2 GameObject, open each relevant child GameObject in Unity and add the /vehicle2 prefix to all topic names.

Topics Prefixing

Installation Steps¶

Install Rust

Follow the official installation guide.

Clone Zenoh Bridge Version release/1.4.0 and Build on All Hosts

cd ~
git clone https://github.com/eclipse-zenoh/zenoh-plugin-ros2dds -b release/1.7.2
cd ~/zenoh-plugin-ros2dds
rustup update
rosdep install --from-paths . --ignore-src -r -y
colcon build --packages-select zenoh_bridge_ros2dds --cmake-args -DCMAKE_BUILD_TYPE=Release
source ~/zenoh-plugin-ros2dds/install/setup.bash

Find the IP Address for Host 1

You will need the IP address of Host 1's active network interface (usually Wi-Fi or Ethernet).

Run the following:
```
ip a
```
Look for your active interface:
- Wi-Fi names usually start with wlp (e.g., wlp3s0)
- Ethernet names usually start with enp (e.g., enp2s0)
- Ignore lo (loopback), docker0, and br-... (Docker bridges)
Example output:
```
inet 10.0.0.172/24 ...
```
In the example output above, the IP before the slash (10.0.0.172) would be used for Zenoh connections:
```
zenoh_bridge_ros2dds -e tcp/<IP-address>:7447
# Example:
zenoh_bridge_ros2dds -e tcp/10.0.0.172:7447
```
Tip: If unsure, choose the interface with an inet address in the 10.x.x.x or 192.168.x.x range and state UP.
Set Up CycloneDDS for Cross-Host Communication

This step is identical to the CycloneDDS setup performed for AWSIM Labs, but it must also be completed on any additional hosts participating in the Zenoh network.

Copy the configuration file from the repository to the home directory:
```
cp ~/distributed-multi-autonomous-vehicle-architecture/cyclonedds.xml ~/cyclonedds.xml
```
Add the following to the .bashrc file:
```
export RMW_IMPLEMENTATION=rmw_cyclonedds_cpp
export CYCLONEDDS_URI=/home/your_username/cyclonedds.xml
```
Replace your_username with your actual Linux username.

Running Zenoh Bridges¶

Each Zenoh bridge must be launched with host-specific configurations, already available in the cloned repository.

Host 1 (start this first)

source ~/zenoh-plugin-ros2dds/install/setup.bash
zenoh_bridge_ros2dds -c ~/distributed-multi-autonomous-vehicle-architecture/zenoh_configs/zenoh-bridge-awsim.json5

Host 2 (start after Host 1 is running):

source ~/zenoh-plugin-ros2dds/install/setup.bash
zenoh_bridge_ros2dds -c ~/distributed-multi-autonomous-vehicle-architecture/zenoh_configs/zenoh-bridge-vehicle2.json5 -e tcp/10.0.0.172:7447

Note: The IP 10.0.0.172 is only an example.

If done correctly, both bridges will be connected.

Next Steps: Proceed to Multi-Vehicle Simulation to start the simulation.
